manage the standard and smart push-pull torches in the Evolve 300/400/500 and external wire feeder

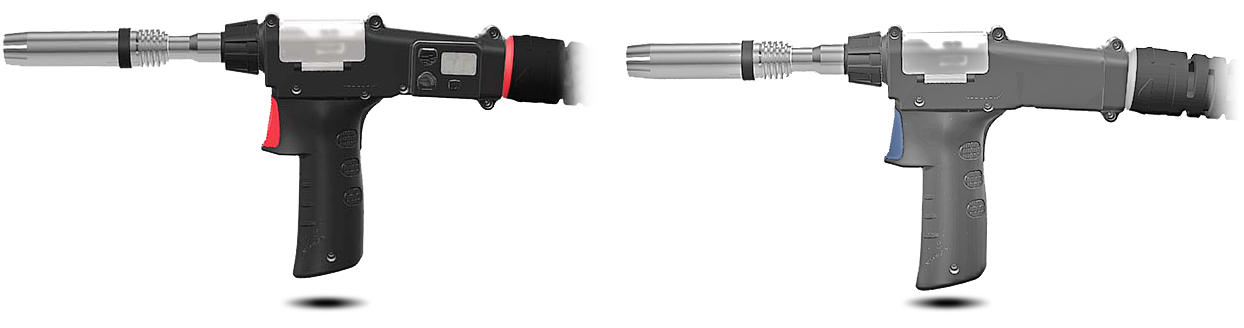

Manage Smart and Standard Push-Pull
With this update it is now possible to connect not only the smart Push Pulls of the Evolve series, but also generic Push Pulls to your Evolve.

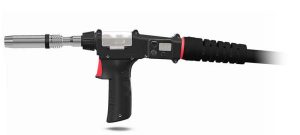

SMART PUSH PULL EVOLVE SERIE

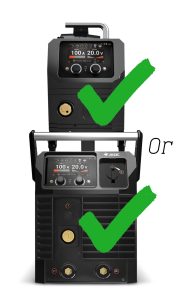

Note: can works with internal wire feeder or external wire feeder, not at the same time.

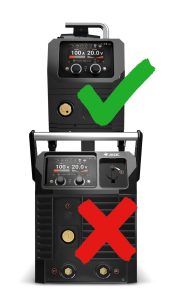

EVOLVE 300/400 WITH EXTERNAL WIRE FEEDER

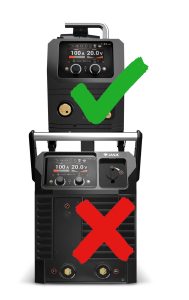

EVOLVE 500 WITH EXTERNAL WIRE FEEDER

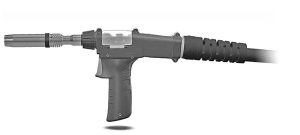

GENERIC PUSH PULL WITH POTENTIOMETER
Note: generic Push-Pull with potentiometer control is available , from firmwares: machine firmware version 1.1.1.110 or later.
Control panel firmware version 2.0.0.5 or later – Plug & Play firmware version 1.2.2.5 or later.
EVOLVE 300/400 WITH + EXTERNAL WIRE FEEDER
EVOLVE 500 + EXTERNAL WIRE FEEDER

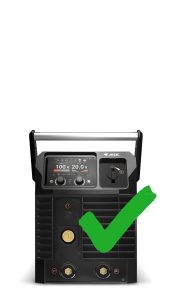

EVOLVE 300/400 (no ext wire feedre installed)
GENERIC PUSH PULL WITH 4 DIGITAL BOTTONS
Note: standard push-pull with 4 digital buttons available , from firmwares:
Machine firmware version 1.1.1.110 or later – Control panel firmware version 2.0.0.5 or later – Plug & Play firmware version 1.2.2.4 or later.
The MIG, synergic or pulsed current and the arc length can be adjusted with 2+2 buttons.
With 2T cycle you can only adjust outside of welding – with 4T cycle you can adjust current and voltage during welding.
EVOLVE 300/400 WITH + EXTERNAL WIRE FEEDER
EVOLVE 500 + EXTERNAL WIRE FEEDER
EVOLVE 300/400 (no ext wire feedre installed)
