NEWS LETTER N. #02 JULY 2025

changed the behavior of the "Home" button and the "Advanced Settings" button

Changes to Display Buttons

The “Home” button has changed behaviour to be more convenient: now when on the main weld screen, the home button will open the Advanced Weld Settings menu, and when on other screens it will always return to the main weld screen with one click.

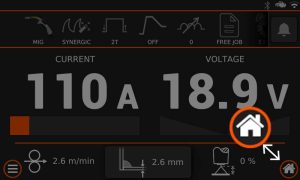

BEFORE

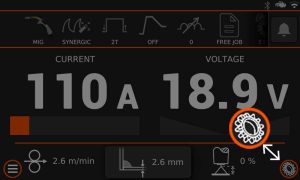

NOW

HOW IT WORKS NOW

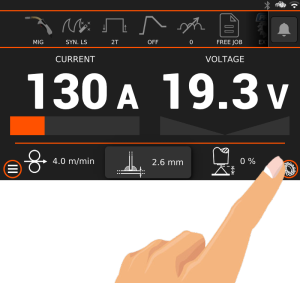

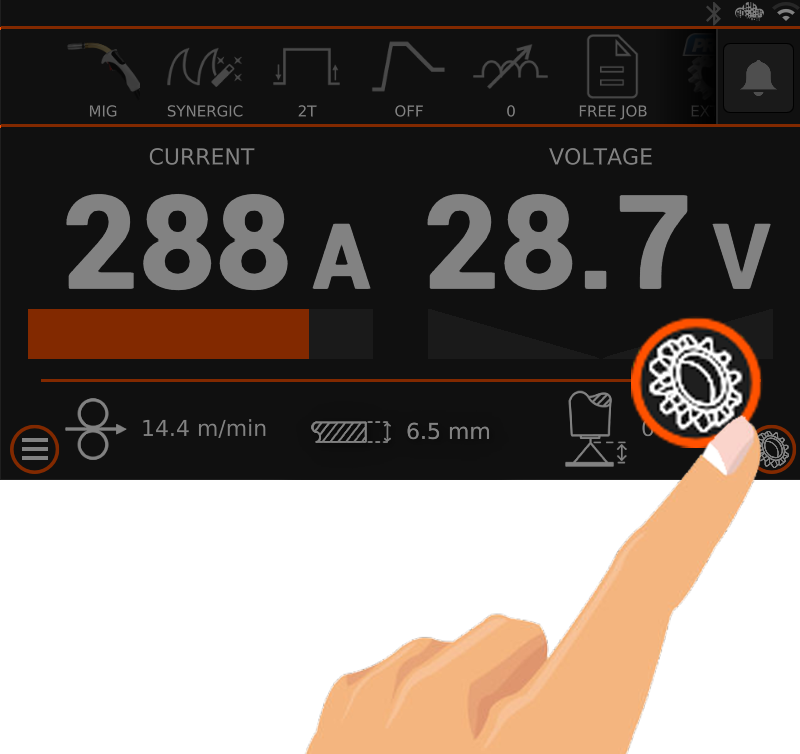

Step 1: to directly access the “Advanced Settings” menu, press the gear button at the bottom right of the display on the main screen.

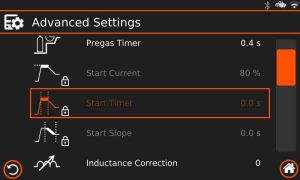

step 2: Scroll through the “Advanced Settings” menu and select the parameters to make changes.

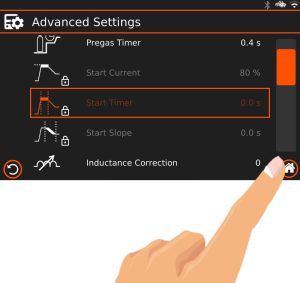

step 3: to exit the “Advanced Settings” menu, press the “Home” button at the bottom right.

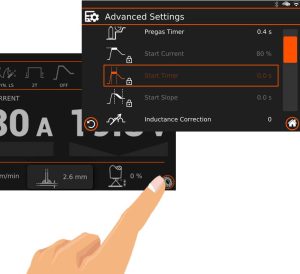

NOTE: from now on, when you return to the “Advanced Settings” menu, the selection will automatically fall on the last adjusted parameter

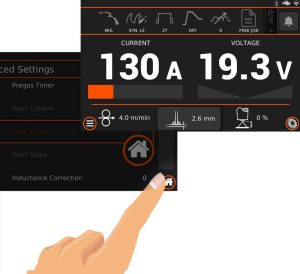

NOTE 2: The Home button now always returns to the main screen with one click, regardless of current position

USER INTERFACE other features and improvements in this release

USER INTERFACE

Wi-Fi, GSM, and Job screens Improved

USER INTERFACE

Added popup MIG External Session active

USER INTERFACE

Jobs number from 10 to 100

other section features and improvment

MACHINE FIRMWARE

PLUG&PLAY AND ACCESSORIES

JTECLOUD&CONFIGURATOR
